Nickel-coated diamond powder

Introduction

Plated diamond powder, also known as diamond coated or plated diamond, the diamond surface is coated with a layer of metal diamond gives many new features, in order to improve the diamond and matrix interfacial bonding ability, holding force and strength, reduce the thermal shock, protection against oxidation and graphitization of diamond, reduce the degree of thermal damage of diamond. To extend the service life of the product. The metal is nickel and titanium and alloy plating method commonly used chemical plating and electroless plating two, weight method is usually 30% and 56%.We provide products customized according to customers' requirements.

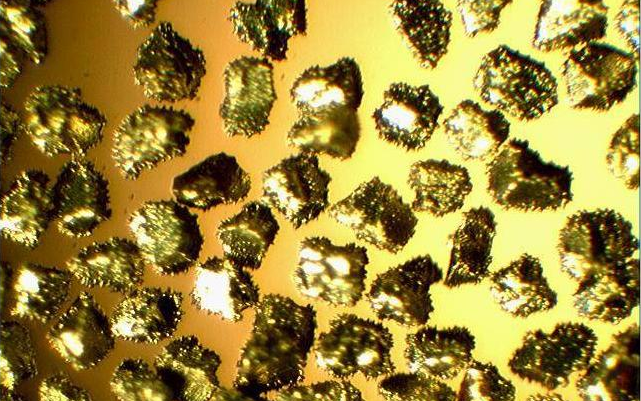

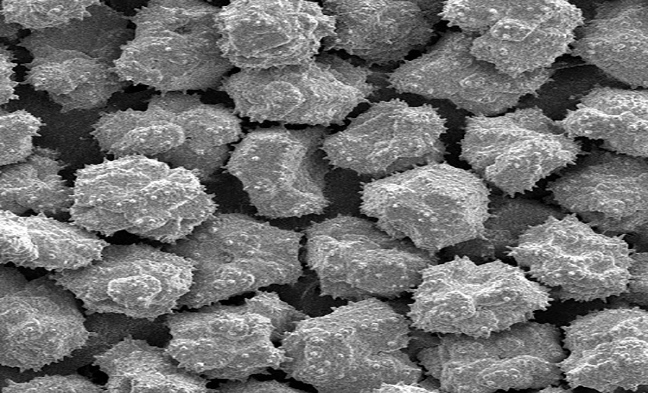

Nickel-coated diamond powder is widely used in the manufacture of metal-bonded and resin-bonded tools, such as cutters, grinding wheels, saw blades and drill bits. After nickel plating, the surface of the film is rough and thorny, the grip is enhanced, the heat dissipation effect is good, and the efficiency is high.


Characteristics

Improving the binding force between the abrasive and the abrasive bonding agent, and reduce the diamond particles from falling off the substrate.

Slowing down thermal shock and protect diamond from transient high temperature shock and carbonization.

During high-temperature sintering and high-temperature grinding, the plating layer isolates and protects the diamond, preventing diamond arbonization and oxidation.

Extending service life of the tools.

Ni-coated Diamond Powder size reference

 GB Standard

USA (ISO) Standard

Japan Standard (Mesh#)

Medium (D50μm)

W0.2

0-0.2

80000

0.1

W0.25

0-0.25

60000

0.11-0.20

W0.5

0-0.5

30000

0.20-0.30

W1

0-1

15000

0.6-0.8

W1.5-

0-2

13000

1.0

W1.5

1-2

12000

1.1-1.3

W2.5

1-3

10000

1.6-1.8

W3

2-3

7000

1.9-2.1

W3.5

2-4-

6500

2.2-2.6

W3.5

2-4

6000

2.6-3.0

W4

2-5

5000

3.1-3.4

W5

3-6

4000

3.5-4.2

W6

4-6

3500

4.4-5.0

W7

4-8

3000

5.0-6.0

W10

4-9

2500

6.1-6.5

W10

5-10

2000

6.5-7.3

W10

6-12

1800

7.3-8.3

W12

8-12

1600

8.3-9.0

W14

7-14

1500

9.1-10.5

W14

8-16

1300

10.0-12.0

W20-

10-20

1200

12.5-15.0

W20

12-22

1000

15.0-17.0

W20+

15-25

800

18.0-20.0

W28

20-30

700

20-23

W28+

22-36

600

23-26

W40-

20-40

500

26-29

W40

30-40

450

29-32

W40+

35-45

400

32-36

W50

36-54

37-43

325/400

320

43-48

270/325

280

48-55

230/270

240

56-64

200/230

200

65-73
